Bertram 28-CC - main image

2023 Bertram 28 CC

location icon Osterville, Massachusetts
Year 2023
Length 28'3 ft

 The New Bertram 28 CC Available Summer 2023 Dockage available at Crosby Yacht Yard for this vessel.

Time to Customize

Available Options Include:

Twin Mercury 300 Verado's (White)

Underneath Hard Top Color- Whisper Gray

Upholstry Color- White Base, Platinum Accents, Quilt Stitching

Custom Boot Stripe Painted- Navy

Bow Filler with Cushion

Windshield Wiper

Hardtop Mounted Rocket Launchers- 6 Rod Powder Coated

Synthetic Teak on Swim Platform

Bow Thruster

Underwater Lights

Electronics:

Dual Garmin 16" Displays

Airmar B175 Chirp Transducer

Garmin 315 VHF

GMR Fantom 18 Radome

Mercury 1st Mate System with Man Overboard monitoring

LED Lightbar

Specifications

Year Built 2023
Category Power
Length Overall 30 ft
Beam 9'9 ft
Max Draft 3'5 ft
Number of Passengers 12
Construction Fiberglass
Hull ID BYM28122X223
Deadrise Angle 23 deg
Min Draft 1'10 ft
Engines 2
Total Engine Power 600 hp
Fuel Tank Cap. 200 gal
Water Tank Cap. 28 gal
Holding Tank Cap. 7 gal
Dry Weight 8500 lb
Bridge Clearance 8'2 ft

Engine 1 Specifications

Make: Mercury
Model: Verado
Fuel: Gasoline
Engine Power: 300hp
Type: Outboard
Year: 2021

Engine 2 Specifications

Make: Mercury
Model: Verado
Fuel: Gasoline
Engine Power: 300hp
Type: Outboard
Year: 2021
Manufacturer Provided Description

Every aspect of the 28CC was designed with you in mind. Featuring all the essentials a fisherman needs and room to entertain up to 12 people, this boat is as comfortable chasing the sunset as it is chasing fish. Each Bertram is designed and built by skilled craftsmen who are boaters themselves, so even the smallest details are taken into account. Every component is intentional, and the materials, colors, and finishes are hand-selected to create timeless designs both inside and out.

Hull and Deck
  • White gel-coated hull and deck

  • Hull: solid fiberglass bottom with molded vinyl ester blend construction

  • Non-skid gelcoat on deck surfaces

  • Deck and FRP components: molded vinyl ester blend construction

  • Hatches/doors with molded fiberglass liners and backs • Heavy-duty white vinyl rub rail with stainless insert and end caps

  • Integrated molded stinger grid and bilge liner

  • All 316L stainless steel hardware

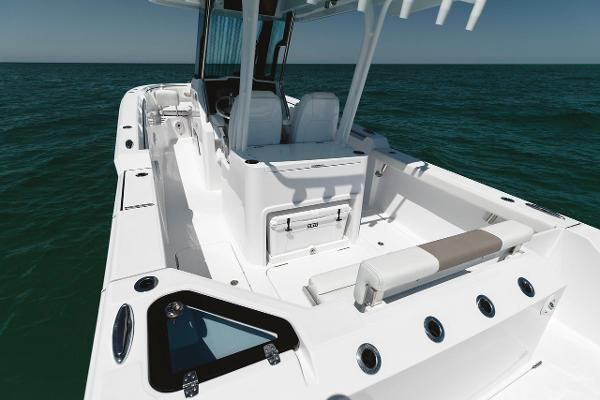

Deck and Cockpit
  • Wraparound bow seating with fold-out backrest

  • Forward-facing console seat

  • Forward-facing fold-down transom seat

  • Standard premium trim package (Dune or Platinum)

  • Fiberglass table with mounting positions integrated into bow seating and aft cockpit

  • Dedicated table storage

  • Bolster pads port and starboard

  • All storage is dry and drained

  • All flat surface cushions are removable

  • Port and starboard bow under seating storage

  • Fiberglass dive door and coaming gate with removable ladder (port side)

  • Transom walkthrough door

  • Molded-in swim platform extensions with pull-out re- boarding ladder integrated into starboard swim platform

  • Covered motor well for easy usage of swim platform

  • 6X stainless steel cupholders (4 in bow seating, 2 at helm) Freshwater washdown at midship

  • Raw water washdown at midship

  • Shower at transom

  • Exterior courtesy lighting—all courtesy and overhead

  • lighting are LED and RGBW controllable

  • Sound system- JL Audio (MM100s-BE Source Unit with

  • 3.5-inch full-color LCD display, M600/6 600W amplifier unit, remote stereo controller at bow, 2X 6.5” speakers in hardtop, 2X 6.5” speakers midship)

Safety
  • Built to meet or exceed ISO Category B

  • Self-bailing cockpit

  • Bilge pump midship: 1,100 gph (automatic/manual)

  • Bilge pumps 2X aft: 2,000 gph and 3,700 gph (automatic / manual with high bilge alarm)

  • 2X fire extinguishers (1 interior and 1 exterior midship)

  • Integrated non-skid

  • Integrated stainless steel wraparound hand rails from midship forward

  • Custom-integrated windshield with integrated stainless steel grab rails

  • Custom-integrated aft hardtop powder-coated aluminum supports and grab rail

  • Molded-in swim platform extensions with pull-out re- boarding ladder integrated into starboard swim platform

  • Compass with backlighting 28” freeboard in cockpit

  • Electric horn

Helm

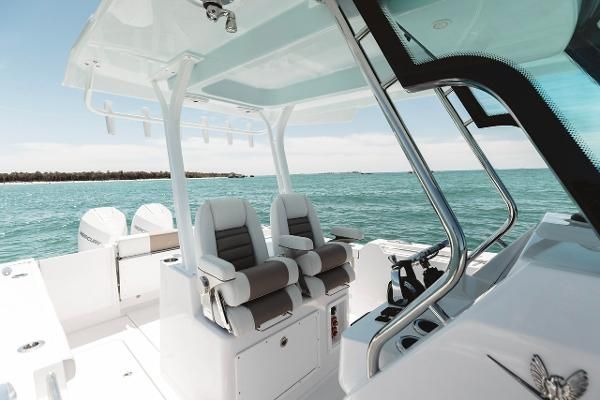

  • 2X custom helm chairs with adjustable position, fold-up arm rests and flip-up bolsters

  • Molded in footrest for seated position

  • Stainless steel steering wheel with tilt helm

  • 2X stainless steel drink holders at helm

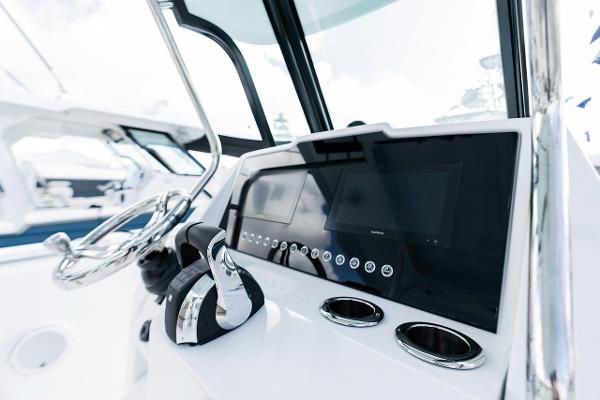

  • Switch panel with illuminated labels and color changing switches for on/off indication and mounting surface for dual 12” Garmin Multi-Function Displays

  • Mercury DTS dual binnacle controls with integrated engine trim controls

  • Trim tab controls
